🚀 Access curated PNW Dataset with SeisBench APIs#
Author: Yiyu Ni
Goal: This notebook first demonstrates how to request USGS ComCat and get waveforms. Then we demostrate access the curated PNW seismic dataset with SeisBench APIs.
import torch
import obspy
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seisbench.data as sbd
import seisbench.generate as sbg
1. Requst data: USGS earthquake catalog (ComCat)#
We start with requesting catalogs from USGS. We can do that though USGS’s ComCat web service (https://earthquake.usgs.gov/earthquakes/search/), but here let’s query the catalog using USGS’s FDSN service through obspy. By creating an obspy FDSN client, we can query event information using the client.get_events() function.
client_usgs = obspy.clients.fdsn.Client("USGS")
events = client_usgs.get_events(minlatitude=43,
maxlatitude=45,
minlongitude=-130,
maxlongitude=-116,
minmagnitude=3.0,
starttime=obspy.UTCDateTime("2020-01-01"),
endtime=obspy.UTCDateTime("2025-01-01"),
contributor="uw")
print(events)
7 Event(s) in Catalog:
2023-11-10T20:33:49.570000Z | +44.404, -124.579 | 3.06 ml | manual
2023-04-24T11:42:58.970000Z | +43.492, -127.558 | 3.2 ml | manual
2023-03-08T09:33:06.030000Z | +44.739, -117.270 | 3.03 ml | manual
2022-10-07T12:52:36.010000Z | +44.540, -122.551 | 4.39 ml | manual
2020-09-25T04:26:07.118000Z | +43.397, -127.084 | 3.3 ml | manual
2020-07-21T23:39:16.430000Z | +44.993, -123.842 | 3.17 ml | manual
2020-03-08T06:54:26.188000Z | +43.258, -126.964 | 3.0 ml | manual
We received events with their event ID, origins, magnitudes, and other metadata.
print(events[0])
Event: 2023-11-10T20:33:49.570000Z | +44.404, -124.579 | 3.06 ml | manual
resource_id: ResourceIdentifier(id="quakeml:earthquake.usgs.gov/fdsnws/event/1/query?eventid=uw61971621&format=quakeml")
event_type: 'earthquake'
creation_info: CreationInfo(agency_id='uw', creation_time=UTCDateTime(2024, 5, 10, 23, 15, 7, 800000), version='4')
preferred_origin_id: ResourceIdentifier(id="quakeml:earthquake.usgs.gov/product/origin/uw61971621/uw/1715382907800/product.xml")
preferred_magnitude_id: ResourceIdentifier(id="quakeml:earthquake.usgs.gov/product/origin/uw61971621/uw/1715382907800/product.xml#magnitude")
---------
event_descriptions: 1 Elements
origins: 1 Elements
magnitudes: 1 Elements
We can also going to the USGS event page using the event id.
⬇️⬇️Click the link generated by the cell below⬇️⬇️
eid = events[0].preferred_origin_id.id.split("/")[3]
print(f"https://earthquake.usgs.gov/earthquakes/eventpage/{eid}/executive")
https://earthquake.usgs.gov/earthquakes/eventpage/uw61971621/executive
One would notice that the event above contains no phase arrival information. This is because requesting the arrival information is not supported yet by the USGS FDSN service (otherwise we could add a includearrivals=True to the query above).
To retrieve the phase arrival information, we need to extract them from the raw QuakeXML file, which contains ALL metadata for this event.
⬇️⬇️Click the link generated by the cell below.⬇️⬇️
quakexml = f"https://earthquake.usgs.gov/fdsnws/event/1/query?eventid={eid}&format=quakeml"
print(quakexml)
https://earthquake.usgs.gov/fdsnws/event/1/query?eventid=uw61971621&format=quakeml
We can load the QuakeXML file directly using obspy.read_events() function, which similarly returns an event object. But this time, we see a picks field, which contains a list of picks for this event.
event = obspy.read_events(quakexml)[0]
# show the first 10 picks
for p in event.picks[:10]:
print("-"*100)
print(p)
----------------------------------------------------------------------------------------------------
Pick
resource_id: ResourceIdentifier(id="quakeml:uw.anss.org/Arrival/UW/16714543")
time: UTCDateTime(2023, 11, 10, 20, 33, 58, 320000) [uncertainty=0.06]
waveform_id: WaveformStreamID(network_code='UW', station_code='ONAB', channel_code='HNZ', location_code='')
onset: 'impulsive'
polarity: 'negative'
evaluation_mode: 'manual'
evaluation_status: 'reviewed'
creation_info: CreationInfo(agency_id='UW', creation_time=UTCDateTime(2023, 11, 10, 21, 10, 58))
----------------------------------------------------------------------------------------------------
Pick
resource_id: ResourceIdentifier(id="quakeml:uw.anss.org/Arrival/UW/16714548")
time: UTCDateTime(2023, 11, 10, 20, 34, 5, 360000) [uncertainty=0.15]
waveform_id: WaveformStreamID(network_code='UW', station_code='ONAB', channel_code='HNN', location_code='')
onset: 'emergent'
polarity: 'undecidable'
evaluation_mode: 'manual'
evaluation_status: 'reviewed'
creation_info: CreationInfo(agency_id='UW', creation_time=UTCDateTime(2023, 11, 10, 21, 10, 58))
----------------------------------------------------------------------------------------------------
Pick
resource_id: ResourceIdentifier(id="quakeml:uw.anss.org/Arrival/UW/16714568")
time: UTCDateTime(2023, 11, 10, 20, 34, 6, 520000) [uncertainty=0.15]
waveform_id: WaveformStreamID(network_code='OO', station_code='HYS12', channel_code='EHN', location_code='')
onset: 'emergent'
polarity: 'undecidable'
evaluation_mode: 'manual'
evaluation_status: 'reviewed'
creation_info: CreationInfo(agency_id='UW', creation_time=UTCDateTime(2023, 11, 10, 21, 10, 58))
----------------------------------------------------------------------------------------------------
Pick
resource_id: ResourceIdentifier(id="quakeml:uw.anss.org/Arrival/UW/16714588")
time: UTCDateTime(2023, 11, 10, 20, 34, 6, 570000) [uncertainty=0.15]
waveform_id: WaveformStreamID(network_code='OO', station_code='HYS11', channel_code='EHN', location_code='')
onset: 'emergent'
polarity: 'undecidable'
evaluation_mode: 'manual'
evaluation_status: 'reviewed'
creation_info: CreationInfo(agency_id='UW', creation_time=UTCDateTime(2023, 11, 10, 21, 10, 58))
----------------------------------------------------------------------------------------------------
Pick
resource_id: ResourceIdentifier(id="quakeml:uw.anss.org/Arrival/UW/16714593")
time: UTCDateTime(2023, 11, 10, 20, 34, 8, 120000) [uncertainty=0.15]
waveform_id: WaveformStreamID(network_code='UO', station_code='TDWTR', channel_code='HHE', location_code='')
onset: 'emergent'
polarity: 'undecidable'
evaluation_mode: 'manual'
evaluation_status: 'reviewed'
creation_info: CreationInfo(agency_id='UW', creation_time=UTCDateTime(2023, 11, 10, 21, 10, 58))
----------------------------------------------------------------------------------------------------
Pick
resource_id: ResourceIdentifier(id="quakeml:uw.anss.org/Arrival/UW/16714598")
time: UTCDateTime(2023, 11, 10, 20, 34, 0, 140000) [uncertainty=0.15]
waveform_id: WaveformStreamID(network_code='UO', station_code='OTTR', channel_code='HNZ', location_code='')
onset: 'emergent'
polarity: 'undecidable'
evaluation_mode: 'manual'
evaluation_status: 'reviewed'
creation_info: CreationInfo(agency_id='UW', creation_time=UTCDateTime(2023, 11, 10, 21, 10, 58))
----------------------------------------------------------------------------------------------------
Pick
resource_id: ResourceIdentifier(id="quakeml:uw.anss.org/Arrival/UW/16714603")
time: UTCDateTime(2023, 11, 10, 20, 34, 8, 890000) [uncertainty=0.15]
waveform_id: WaveformStreamID(network_code='UO', station_code='OTTR', channel_code='HNN', location_code='')
onset: 'emergent'
polarity: 'undecidable'
evaluation_mode: 'manual'
evaluation_status: 'reviewed'
creation_info: CreationInfo(agency_id='UW', creation_time=UTCDateTime(2023, 11, 10, 21, 10, 58))
----------------------------------------------------------------------------------------------------
Pick
resource_id: ResourceIdentifier(id="quakeml:uw.anss.org/Arrival/UW/16714608")
time: UTCDateTime(2023, 11, 10, 20, 34, 0, 430000) [uncertainty=0.06]
waveform_id: WaveformStreamID(network_code='UW', station_code='TOLO', channel_code='ENZ', location_code='')
onset: 'impulsive'
polarity: 'positive'
evaluation_mode: 'manual'
evaluation_status: 'reviewed'
creation_info: CreationInfo(agency_id='UW', creation_time=UTCDateTime(2023, 11, 10, 21, 10, 58))
----------------------------------------------------------------------------------------------------
Pick
resource_id: ResourceIdentifier(id="quakeml:uw.anss.org/Arrival/UW/16714613")
time: UTCDateTime(2023, 11, 10, 20, 34, 9, 220000) [uncertainty=0.15]
waveform_id: WaveformStreamID(network_code='UW', station_code='TOLO', channel_code='ENN', location_code='')
onset: 'emergent'
polarity: 'undecidable'
evaluation_mode: 'manual'
evaluation_status: 'reviewed'
creation_info: CreationInfo(agency_id='UW', creation_time=UTCDateTime(2023, 11, 10, 21, 10, 58))
----------------------------------------------------------------------------------------------------
Pick
resource_id: ResourceIdentifier(id="quakeml:uw.anss.org/Arrival/UW/16714618")
time: UTCDateTime(2023, 11, 10, 20, 34, 0, 910000) [uncertainty=0.06]
waveform_id: WaveformStreamID(network_code='UO', station_code='DEPO', channel_code='HNZ', location_code='')
onset: 'impulsive'
polarity: 'positive'
evaluation_mode: 'manual'
evaluation_status: 'reviewed'
creation_info: CreationInfo(agency_id='UW', creation_time=UTCDateTime(2023, 11, 10, 21, 10, 58))

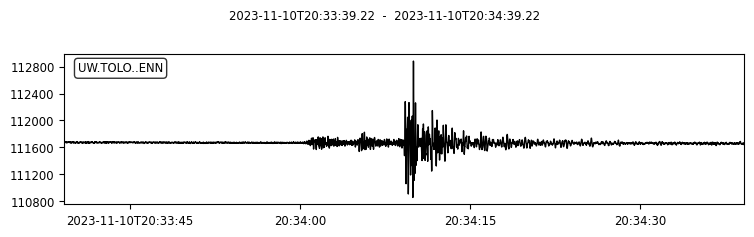

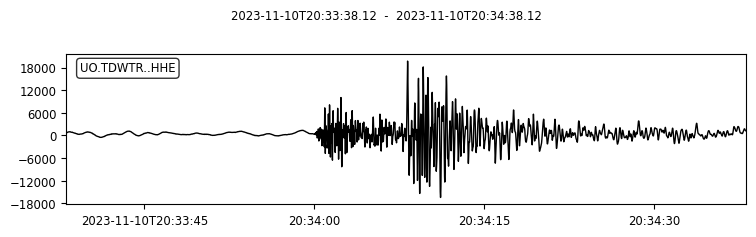

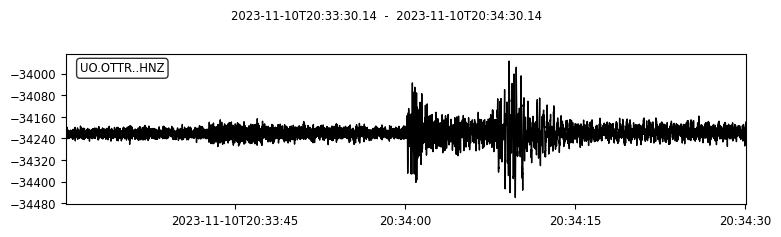

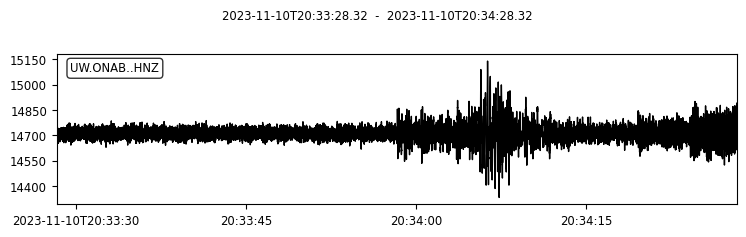

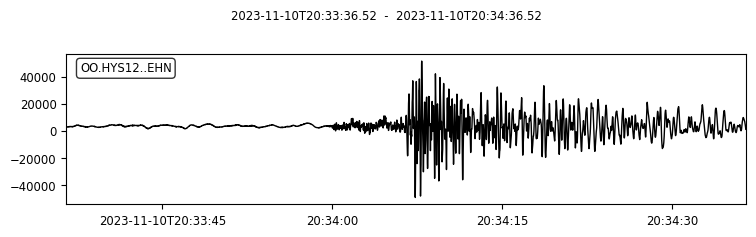

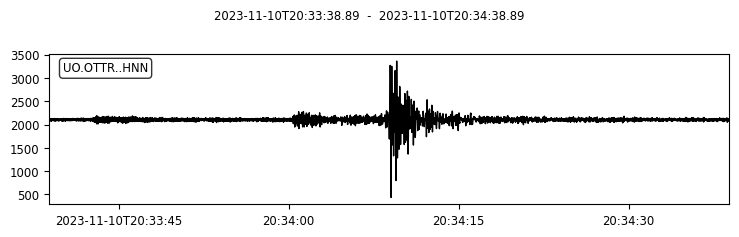

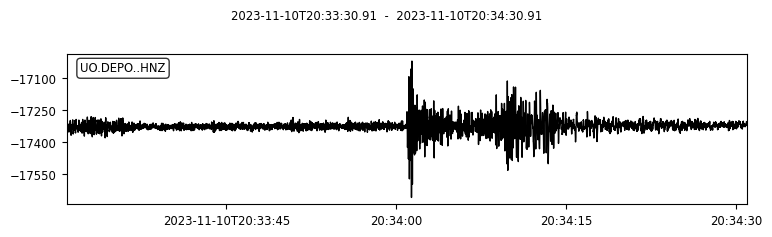

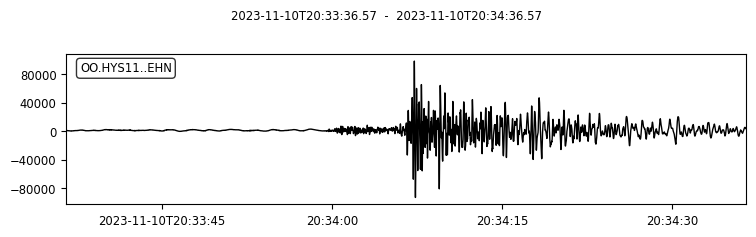

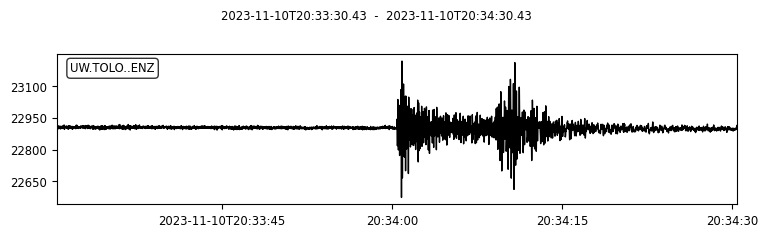

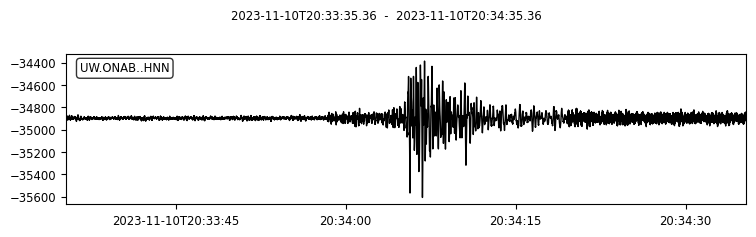

We can also try to plot the waveforms for this event. To do that, we create another FDSN client for IRIS (or renamed as EarthScope now). Then we request waveforms for the first ten picks from the above event.
client_iris = obspy.clients.fdsn.Client("IRIS")
for pk in event.picks[:10]:
ptime = pk.time
net = pk.waveform_id.network_code
sta = pk.waveform_id.station_code
loc = pk.waveform_id.location_code
cha = pk.waveform_id.channel_code
s = client_iris.get_waveforms(network=net, station=sta, location=loc, channel=cha,
starttime=ptime-30, endtime=ptime+30) # get 60-second waveform
s.plot();
✏️ Exercise#
Pick one event that you are interested (not necessarily from PNW). Get its event ID and check its event page.
Query it from USGS ComCat using
obspy.get_events().Get its phase arrival information by reading its QuakeXML file using
obspy.read_events().Get waveforms make plots for its phase picks using
client_iris.get_waveforms().
2. Use the curated PNW dataset with SeisBench API#
The PNW dataset is made by the waveform file (in hdf5 format, sometime also called h5) and the perspective metadata file (in csv format). See the structure in the data/pnwml folder with two small datasets (i.e., miniPNW and mesoPNW).
🚀 Read more about SeisBench data format: https://seisbench.readthedocs.io/en/stable/pages/data_format.html
# replace the path with where your dataset is
! tree -lh ../data/pnwml
[ 160] ../data/pnwml
├── [ 128] mesoPNW
│ ├── [4.7M] metadata.csv
│ └── [6.3G] waveforms.hdf5
└── [ 160] miniPNW
├── [424K] metadata.csv
└── [640M] waveforms.hdf5
2 directories, 4 files
The waveforms.hdf5 contains arrays of seismograms. We can see arrays are grouped into 10 buckets. The file also contains very few metadata like the component_order for three-component seismogram.
🛠️ h5dump is a useful tool to check the hierarchical structure of this HDF5 file.
# replace the path with where your dataset is
! h5dump -n ../data/pnwml/mesoPNW/waveforms.hdf5
HDF5 "../data/pnwml/mesoPNW/waveforms.hdf5" {
FILE_CONTENTS {
group /
group /data
dataset /data/bucket1
dataset /data/bucket10
dataset /data/bucket2
dataset /data/bucket3
dataset /data/bucket4
dataset /data/bucket5
dataset /data/bucket6
dataset /data/bucket7
dataset /data/bucket8
dataset /data/bucket9
group /data_format
dataset /data_format/component_order
}
}
The metadata.csv represents a table of metadata for each data sample. It also documents where to locate the waveform. We will have a better view of this table later.
# replace the path with where your dataset is
! head -n 5 ../data/pnwml/mesoPNW/metadata.csv
event_id,source_origin_time,source_latitude_deg,source_longitude_deg,source_type,source_depth_km,preferred_source_magnitude,preferred_source_magnitude_type,preferred_source_magnitude_uncertainty,source_depth_uncertainty_km,source_horizontal_uncertainty_km,station_network_code,station_channel_code,station_code,station_location_code,station_latitude_deg,station_longitude_deg,station_elevation_m,trace_name,trace_sampling_rate_hz,trace_start_time,trace_S_arrival_sample,trace_P_arrival_sample,trace_S_arrival_uncertainty_s,trace_P_arrival_uncertainty_s,trace_P_polarity,trace_S_onset,trace_P_onset,trace_snr_db,source_type_pnsn_label,source_local_magnitude,source_local_magnitude_uncertainty,source_duration_magnitude,source_duration_magnitude_uncertainty,source_hand_magnitude,trace_missing_channel,trace_has_offset,bucket,tindex
uw10564613,2002-10-03T01:56:49.530000Z,48.553,-122.52,earthquake,14.907,2.1,md,0.03,1.68,0.694,UW,BH,GNW,--,47.564,-122.825,220.0,"bucket4$0,:3,:15001",100,2002-10-03T01:55:59.530000Z,8097,6733,0.04,0.02,undecidable,,,6.135|3.065|11.766,eq,,,2.1,0.03,,0,1,4,0
uw10564613,2002-10-03T01:56:49.530000Z,48.553,-122.52,earthquake,14.907,2.1,md,0.03,1.68,0.694,UW,EH,RPW,--,48.448,-121.515,850.0,"bucket9$0,:3,:15001",100,2002-10-03T01:55:59.530000Z,7258,6238,0.04,0.01,undecidable,,,nan|nan|22.583,eq,,,2.1,0.03,,2,0,9,0
uw10564613,2002-10-03T01:56:49.530000Z,48.553,-122.52,earthquake,14.907,2.1,md,0.03,1.68,0.694,UW,BH,SQM,--,48.074,-123.048,45.0,"bucket4$1,:3,:15001",100,2002-10-03T01:55:59.530000Z,7037,6113,0.08,0.04,undecidable,,,1.756|3.057|3.551,eq,,,2.1,0.03,,0,1,4,1
uw10564613,2002-10-03T01:56:49.530000Z,48.553,-122.52,earthquake,14.907,2.1,md,0.03,1.68,0.694,UW,EH,MCW,--,48.679,-122.833,693.0,"bucket7$0,:3,:15001",100,2002-10-03T01:55:59.530000Z,5894,5442,0.04,0.01,negative,,,nan|nan|27.185,eq,,,2.1,0.03,,2,0,7,0
We can load the dataset using seisbench.data as a WaveformDataset class.
# replace the path with where your dataset is
dataset = sbd.WaveformDataset("../data/pnwml/mesoPNW/", component_order="ENZ")
print(f"The dataset contains {len(dataset)} samples.")
2025-05-11 22:27:07,442 | seisbench | WARNING | Dimension order not specified in data set. Assuming CW.
The dataset contains 18640 samples.

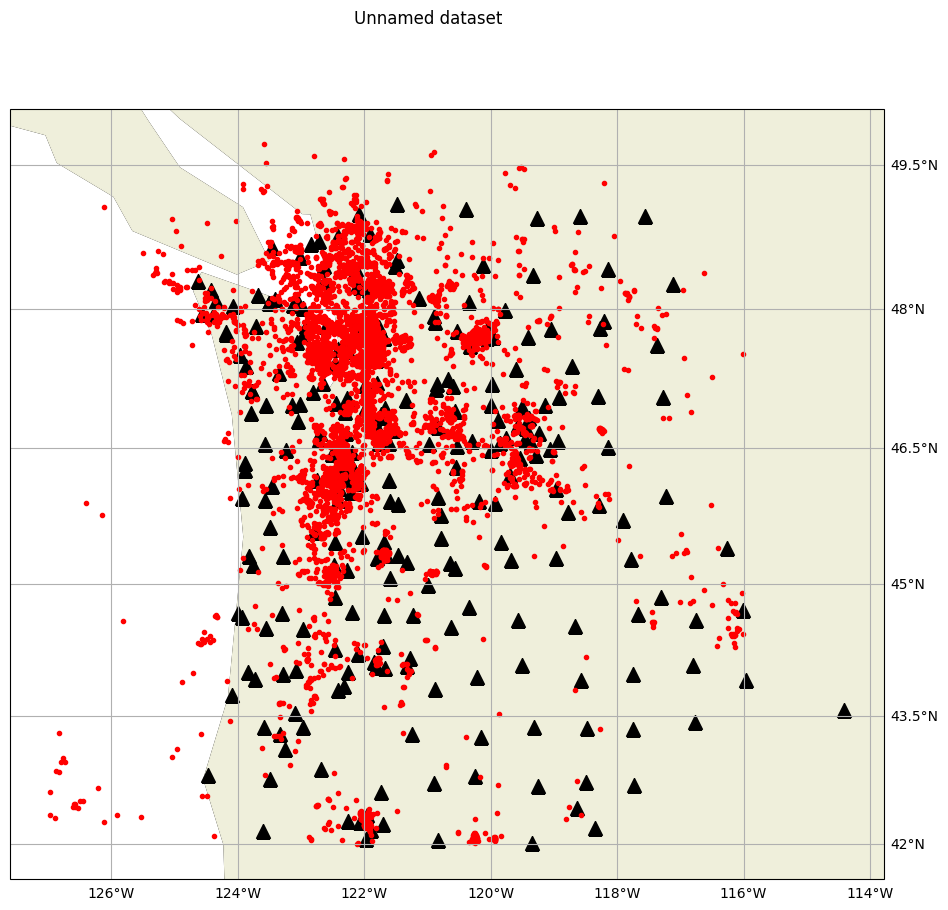

Let’s make the plot of the PNW dataset: events and stations.
dataset.plot_map();
The metadata can be accessed by the .metadata attribute of the dataset as a pd.DataFrame object. Each row here represents one sample (one 3C waveforms).
pd.set_option('display.max_columns', None) # show all columns
meta = dataset.metadata
meta.head()
| index | event_id | source_origin_time | source_latitude_deg | source_longitude_deg | source_type | source_depth_km | preferred_source_magnitude | preferred_source_magnitude_type | preferred_source_magnitude_uncertainty | source_depth_uncertainty_km | source_horizontal_uncertainty_km | station_network_code | station_channel_code | station_code | station_location_code | station_latitude_deg | station_longitude_deg | station_elevation_m | trace_name | trace_sampling_rate_hz | trace_start_time | trace_S_arrival_sample | trace_P_arrival_sample | trace_S_arrival_uncertainty_s | trace_P_arrival_uncertainty_s | trace_P_polarity | trace_S_onset | trace_P_onset | trace_snr_db | source_type_pnsn_label | source_local_magnitude | source_local_magnitude_uncertainty | source_duration_magnitude | source_duration_magnitude_uncertainty | source_hand_magnitude | trace_missing_channel | trace_has_offset | bucket | tindex | trace_chunk | trace_component_order | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0 | uw10564613 | 2002-10-03T01:56:49.530000Z | 48.553 | -122.520 | earthquake | 14.907 | 2.1 | md | 0.03 | 1.68 | 0.694 | UW | BH | GNW | -- | 47.564 | -122.825 | 220.0 | bucket4$0,:3,:15001 | 100.0 | 2002-10-03T01:55:59.530000Z | 8097 | 6733 | 0.04 | 0.02 | undecidable | NaN | NaN | 6.135|3.065|11.766 | eq | NaN | NaN | 2.1 | 0.03 | NaN | 0 | 1 | 4 | 0 | ENZ | |
| 1 | 1 | uw10564613 | 2002-10-03T01:56:49.530000Z | 48.553 | -122.520 | earthquake | 14.907 | 2.1 | md | 0.03 | 1.68 | 0.694 | UW | EH | RPW | -- | 48.448 | -121.515 | 850.0 | bucket9$0,:3,:15001 | 100.0 | 2002-10-03T01:55:59.530000Z | 7258 | 6238 | 0.04 | 0.01 | undecidable | NaN | NaN | nan|nan|22.583 | eq | NaN | NaN | 2.1 | 0.03 | NaN | 2 | 0 | 9 | 0 | ENZ | |
| 2 | 2 | uw10564613 | 2002-10-03T01:56:49.530000Z | 48.553 | -122.520 | earthquake | 14.907 | 2.1 | md | 0.03 | 1.68 | 0.694 | UW | BH | SQM | -- | 48.074 | -123.048 | 45.0 | bucket4$1,:3,:15001 | 100.0 | 2002-10-03T01:55:59.530000Z | 7037 | 6113 | 0.08 | 0.04 | undecidable | NaN | NaN | 1.756|3.057|3.551 | eq | NaN | NaN | 2.1 | 0.03 | NaN | 0 | 1 | 4 | 1 | ENZ | |
| 3 | 3 | uw10564613 | 2002-10-03T01:56:49.530000Z | 48.553 | -122.520 | earthquake | 14.907 | 2.1 | md | 0.03 | 1.68 | 0.694 | UW | EH | MCW | -- | 48.679 | -122.833 | 693.0 | bucket7$0,:3,:15001 | 100.0 | 2002-10-03T01:55:59.530000Z | 5894 | 5442 | 0.04 | 0.01 | negative | NaN | NaN | nan|nan|27.185 | eq | NaN | NaN | 2.1 | 0.03 | NaN | 2 | 0 | 7 | 0 | ENZ | |
| 4 | 4 | uw10568748 | 2002-09-26T07:00:04.860000Z | 48.481 | -123.133 | earthquake | 22.748 | 2.9 | md | 0.03 | 0.91 | 0.672 | UW | HH | SP2 | -- | 47.556 | -122.249 | 30.0 | bucket3$0,:3,:15001 | 100.0 | 2002-09-26T06:59:14.860000Z | 8647 | 6948 | 0.04 | 0.01 | negative | NaN | NaN | 10.881|17.107|2.242 | eq | NaN | NaN | 2.9 | 0.03 | NaN | 0 | 1 | 3 | 0 | ENZ |

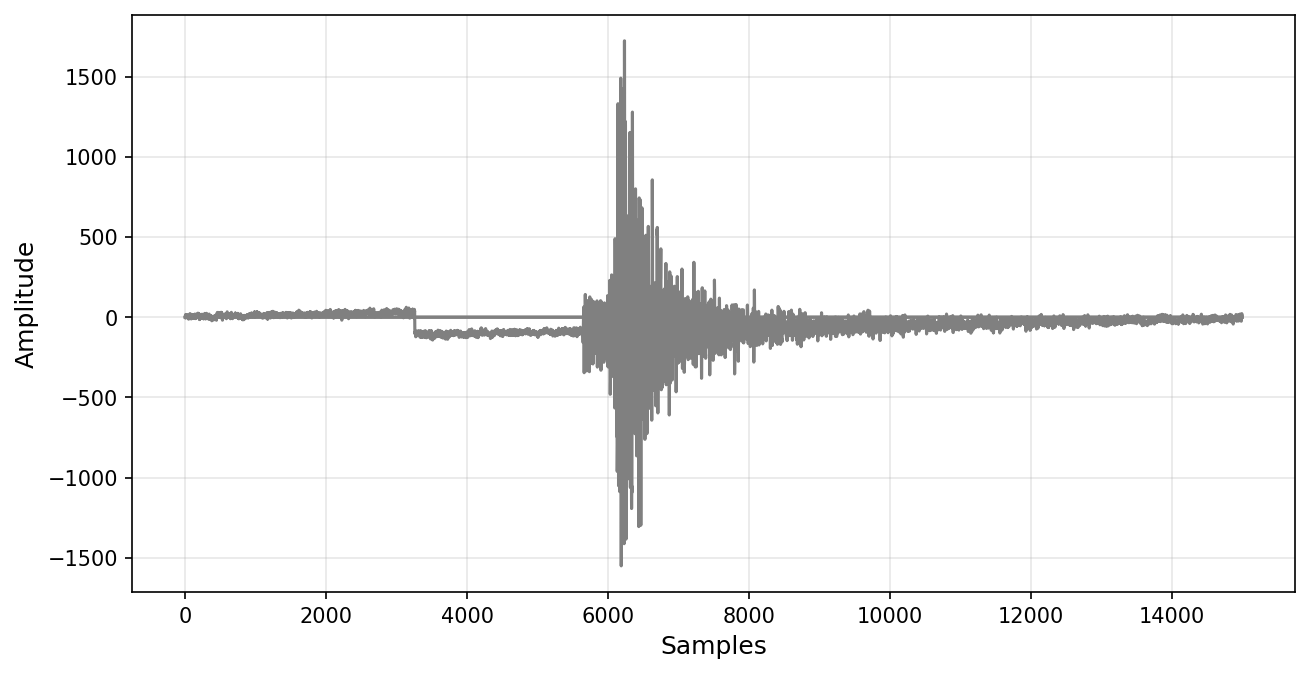

For each sample, we can get its waveform and metadata using dataset.get_sample().
idx = 50
waveform_sp, metadata_sp = dataset.get_sample(idx) # returns waveforms and metadata for that sample
print(metadata_sp)
plt.figure(figsize = (10, 5), dpi = 150)
plt.plot(waveform_sp.T, c='gray')
plt.xlabel("Samples", fontsize = 12)
plt.ylabel("Amplitude", fontsize = 12)
plt.grid(True, alpha=0.3)
{'index': 50, 'event_id': 'uw10578728', 'source_origin_time': '2002-08-31T01:23:39.420000Z', 'source_latitude_deg': 47.419, 'source_longitude_deg': -120.078, 'source_type': 'earthquake', 'source_depth_km': 11.774, 'preferred_source_magnitude': 2.0, 'preferred_source_magnitude_type': 'md', 'preferred_source_magnitude_uncertainty': 0.04, 'source_depth_uncertainty_km': 1.08, 'source_horizontal_uncertainty_km': 0.68, 'station_network_code': 'UW', 'station_channel_code': 'EH', 'station_code': 'EPH', 'station_location_code': '--', 'station_latitude_deg': 47.356, 'station_longitude_deg': -119.597, 'station_elevation_m': 661.0, 'trace_name': 'bucket3$4,:3,:15001', 'trace_sampling_rate_hz': 100.0, 'trace_start_time': '2002-08-31T01:22:49.420000Z', 'trace_S_arrival_sample': 6119, 'trace_P_arrival_sample': 5642, 'trace_S_arrival_uncertainty_s': 0.06, 'trace_P_arrival_uncertainty_s': 0.04, 'trace_P_polarity': 'undecidable', 'trace_S_onset': nan, 'trace_P_onset': nan, 'trace_snr_db': 'nan|nan|21.872', 'source_type_pnsn_label': 'eq', 'source_local_magnitude': nan, 'source_local_magnitude_uncertainty': nan, 'source_duration_magnitude': 2.0, 'source_duration_magnitude_uncertainty': 0.04, 'source_hand_magnitude': nan, 'trace_missing_channel': 2, 'trace_has_offset': 1, 'bucket': 3, 'tindex': 4, 'trace_chunk': '', 'trace_component_order': 'ENZ', 'trace_source_sampling_rate_hz': array(100.), 'trace_npts': 15001}
3. SeisBench data augmentataion APIs#
A generator is employed as a dataset wrapper, where users specify APIs for data pre-processing and augmentation. These are several augmentation methods implemented in the cell below.
sbg.Filter
sbg.WindowAroundSample
sbg.RandomWindow
sbg.Normalize
sbg.DetectionLabeller
sbg.ProbabilisticLabeller
🚀 See https://seisbench.readthedocs.io/en/latest/pages/documentation/generate.html for all supported augmentation methods.
generator = sbg.GenericGenerator(dataset)
phase_dict = {"trace_P_arrival_sample": "P",
"trace_S_arrival_sample": "S"}
augmentations = [
sbg.Filter(4, 0.1, "highpass", forward_backward=True),
sbg.WindowAroundSample(list(phase_dict.keys()),
samples_before=5000,
windowlen=10000,
selection="first",
strategy="pad"),
sbg.RandomWindow(windowlen=6000),
sbg.Normalize(demean_axis=-1,
amp_norm_axis=-1,
amp_norm_type="peak"),
sbg.ChangeDtype(np.float32),

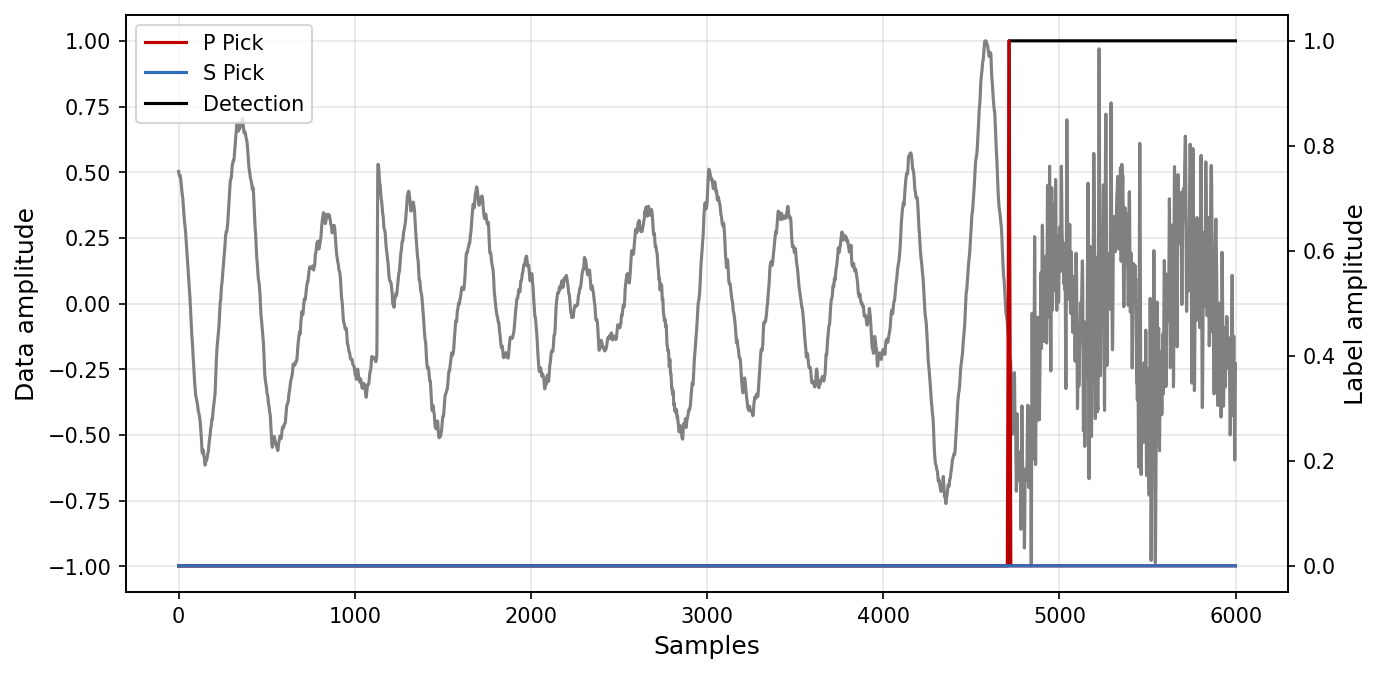

sbg.DetectionLabeller("trace_P_arrival_sample",
"trace_S_arrival_sample",
factor=1.,
dim=0,
key=('X', 'y2')),
sbg.ProbabilisticLabeller(label_columns=phase_dict,
shape='triangle',
sigma=10,
dim=0,
key=('X', 'y1'))
]
generator.add_augmentations(augmentations)
print(generator)
<class 'seisbench.generate.generator.GenericGenerator'> with 7 augmentations:
1. Filter (highpass, order=4, frequencies=0.1, analog=False, forward_backward=True, axis=-1)
2. WindowAroundSample (metadata_keys=['trace_P_arrival_sample', 'trace_S_arrival_sample'], samples_before=5000, selection=first)
3. RandomWindow (low=None, high=None)
4. Normalize (Demean (axis=-1), Amplitude normalization (type=peak, axis=-1))
5. ChangeDtype (dtype=<class 'numpy.float32'>, key=('X', 'X'))
6. DetectionLabeller (label_type=multi_class, dim=0)
7. ProbabilisticLabeller (label_type=multi_class, dim=0)
A generator is indexable. You can use an index to access a specific data sample, and plot the waveforms.
idx = 0
sp = generator[idx]
for k, v in sp.items():
print("-"*100)
print({k: v})
print({k: v.shape})
----------------------------------------------------------------------------------------------------
{'X': array([[ 0.5028205 , 0.49826217, 0.49422786, ..., -0.47398168,
-0.3446783 , -0.22915077],
[-0.08106346, -0.08391804, -0.08632651, ..., -0.14722095,
-0.16184352, -0.15441144],
[-0.18536477, -0.18804231, -0.1924158 , ..., -0.26885262,
-0.2373294 , -0.20979185]], dtype=float32)}
{'X': (3, 6000)}
----------------------------------------------------------------------------------------------------
{'y2': array([[0., 0., 0., ..., 1., 1., 1.]])}
{'y2': (1, 6000)}
----------------------------------------------------------------------------------------------------
{'y1': array([[0., 0., 0., ..., 0., 0., 0.],
[0., 0., 0., ..., 0., 0., 0.],
[1., 1., 1., ..., 1., 1., 1.]])}
{'y1': (3, 6000)}
plt.figure(figsize = (10, 5), dpi = 150)
plt.plot(sp['X'][0, :].T, c='gray')
plt.xlabel("Samples", fontsize = 12)
plt.ylabel("Data amplitude", fontsize = 12)
plt.grid(True, alpha=0.3)
ax = plt.gca().twinx()
ax.plot(sp['y1'][0, :].T, label = "P Pick", c="#c00000")
ax.plot(sp['y1'][1, :].T, label = "S Pick", c="#2f6eba")
ax.plot(sp['y2'][0, :].T, label = "Detection", color='k', zorder=-1)
plt.ylabel("Label amplitude", fontsize = 12)
plt.legend(loc = 'upper left')
<matplotlib.legend.Legend at 0x2ad6279e0>
4. Loading data in batch#
Machine Learning model training usually load data in batch. The generator object can be wrapped by the pytorch API torch.utils.data.DataLoader to generate samples in batch. See examples below that creates a data loader and return 256 samples in batch.
batch_size = 256
loader = torch.utils.data.DataLoader(generator,
batch_size=batch_size, shuffle=True, num_workers=0)
See the changes in the array size as well as the array type.
for i in loader:
for k, v in i.items():
print("-"*100)
print({k: v})
print({k: v.shape})
break
----------------------------------------------------------------------------------------------------
{'X': tensor([[[ 0.0000e+00, 0.0000e+00, 0.0000e+00, ..., 0.0000e+00,
0.0000e+00, 0.0000e+00],
[ 0.0000e+00, 0.0000e+00, 0.0000e+00, ..., 0.0000e+00,
0.0000e+00, 0.0000e+00],
[ 7.6454e-03, 1.0564e-02, 1.7516e-02, ..., 6.3099e-03,
-1.5590e-02, -1.7952e-02]],
[[ 5.1433e-01, 5.1804e-01, 5.2179e-01, ..., 3.4767e-04,
1.9591e-04, 1.6224e-04],
[ 5.4271e-02, 5.1613e-02, 5.2406e-02, ..., 6.3317e-02,
6.0317e-02, 6.2162e-02],
[ 8.0240e-02, 7.6082e-02, 7.3566e-02, ..., -4.6032e-02,
-4.0793e-02, -4.0408e-02]],
[[-3.9497e-01, -3.8880e-01, -3.8297e-01, ..., 6.2524e-02,
5.7797e-02, 5.5235e-02],
[-7.8458e-03, -6.4780e-03, -5.2017e-03, ..., -2.6047e-01,
-2.5525e-01, -2.4984e-01],
[ 2.1773e-01, 2.1298e-01, 2.0873e-01, ..., -2.3250e-02,
-2.1913e-02, -1.7747e-02]],
...,
[[ 0.0000e+00, 0.0000e+00, 0.0000e+00, ..., 0.0000e+00,
0.0000e+00, 0.0000e+00],
[ 0.0000e+00, 0.0000e+00, 0.0000e+00, ..., 0.0000e+00,
0.0000e+00, 0.0000e+00],
[-1.6720e-02, -5.8528e-03, 8.1196e-03, ..., 1.0182e-02,
-2.5844e-03, -1.8457e-02]],
[[ 0.0000e+00, 0.0000e+00, 0.0000e+00, ..., 0.0000e+00,
0.0000e+00, 0.0000e+00],
[ 0.0000e+00, 0.0000e+00, 0.0000e+00, ..., 0.0000e+00,
0.0000e+00, 0.0000e+00],
[ 8.1314e-03, 5.9321e-03, -2.8691e-03, ..., -4.1186e-03,
2.1731e-02, 2.7229e-02]],
[[ 0.0000e+00, 0.0000e+00, 0.0000e+00, ..., 0.0000e+00,
0.0000e+00, 0.0000e+00],
[ 0.0000e+00, 0.0000e+00, 0.0000e+00, ..., 0.0000e+00,
0.0000e+00, 0.0000e+00],
[ 1.4159e-02, 2.1338e-02, 2.6946e-02, ..., -7.1108e-03,
-5.2330e-03, -7.6930e-03]]])}
{'X': torch.Size([256, 3, 6000])}
----------------------------------------------------------------------------------------------------
{'y2': tensor([[[0., 0., 0., ..., 0., 0., 0.]],
[[0., 0., 0., ..., 0., 0., 0.]],
[[0., 0., 0., ..., 0., 0., 0.]],
...,
[[0., 0., 0., ..., 0., 0., 0.]],
[[0., 0., 0., ..., 0., 0., 0.]],
[[0., 0., 0., ..., 0., 0., 0.]]], dtype=torch.float64)}
{'y2': torch.Size([256, 1, 6000])}
----------------------------------------------------------------------------------------------------
{'y1': tensor([[[0., 0., 0., ..., 0., 0., 0.],
[0., 0., 0., ..., 0., 0., 0.],
[1., 1., 1., ..., 1., 1., 1.]],
[[0., 0., 0., ..., 0., 0., 0.],
[0., 0., 0., ..., 0., 0., 0.],
[1., 1., 1., ..., 1., 1., 1.]],
[[0., 0., 0., ..., 0., 0., 0.],
[0., 0., 0., ..., 0., 0., 0.],
[1., 1., 1., ..., 1., 1., 1.]],
...,
[[0., 0., 0., ..., 0., 0., 0.],
[0., 0., 0., ..., 0., 0., 0.],
[1., 1., 1., ..., 1., 1., 1.]],
[[0., 0., 0., ..., 0., 0., 0.],
[0., 0., 0., ..., 0., 0., 0.],
[1., 1., 1., ..., 1., 1., 1.]],
[[0., 0., 0., ..., 0., 0., 0.],
[0., 0., 0., ..., 0., 0., 0.],
[1., 1., 1., ..., 1., 1., 1.]]], dtype=torch.float64)}
{'y1': torch.Size([256, 3, 6000])}
Reference#
Ni, Y., Hutko, A., Skene, F., Denolle, M., Malone, S., Bodin, P., Hartog, R., & Wright, A. (2023). Curated Pacific Northwest AI-ready Seismic Dataset. Seismica, 2(1).
Woollam, J., Münchmeyer, J., Tilmann, F., Rietbrock, A., Lange, D., Bornstein, T., … & Soto, H. (2022). SeisBench—A toolbox for machine learning in seismology. Seismological Society of America, 93(3), 1695-1709.
