GeoSlip2D profile slip inversion of synthetic data#
This notebook demonstrates a complete 1D profile slip inversion workflow in GeoSlip2D using synthetic velocity data.
Learning goals#
Build homogeneous Green’s functions for a subduction interface.
Project map-view velocity data onto a 1D profile.
Solve a regularized slip inversion with configurable bounds and solver options.
Interpret model fit, residuals, and recovered slip.
Workflow overview#
Configure inversion options and choose a synthetic dataset.
Load and project lon/lat velocity data to a profile.
Build and save/reload homogeneous Green’s functions.
Solve the inversion and visualize fits and slip.
Data format#
Input files in the data directory use columns:
lon, lat, Ve, Vn, Vu, Sige, Sign, Sigu
Suggested run order#
Run all cells once from top to bottom.
If you change dataset or inversion settings, rerun from Section 1 onward.
If you change interface/Green’s-function settings, rerun from Section 4 onward.
# import standard libraries and helper functions
from pathlib import Path
import matplotlib.pyplot as plt
import numpy as np
import geoslip2d as gs2d
from geoslip2d.inversion import (
filter_profile_data,
observations_from_projected_profile,
save_inversion_result,
)
# Resolve project/data/output directories.
PROJECT_ROOT = Path.cwd().resolve()
OUTPUT_DIR = PROJECT_ROOT / "outputs"
OUTPUT_DIR.mkdir(parents=True, exist_ok=True)
DATA_DIR = PROJECT_ROOT / "data"
print(f"Using PROJECT_ROOT = {PROJECT_ROOT}")
print(f"Reading data from {DATA_DIR}")
print(f"Writing outputs to {OUTPUT_DIR}")
from geoslip2d.notebook_helpers import (
make_synthetic_observations,
patch_center_depths,
patch_center_x,
plot_inversion_results,
plot_surface_velocities,
run_pair_inversions,
surface_velocity,
uniform_backslip_above_depth,
)
Using PROJECT_ROOT = /Users/kajjohns/Library/CloudStorage/OneDrive-IndianaUniversity/FromGoogle/files/Release/GeoSlip2D/Geodesy_TSC
Reading data from /Users/kajjohns/Library/CloudStorage/OneDrive-IndianaUniversity/FromGoogle/files/Release/GeoSlip2D/Geodesy_TSC/data
Writing outputs to /Users/kajjohns/Library/CloudStorage/OneDrive-IndianaUniversity/FromGoogle/files/Release/GeoSlip2D/Geodesy_TSC/outputs
1. Choose dataset and inversion mode#
Select a synthetic dataset and make sure the inversion sign convention matches it:
synthetic_data->inversion_mode="forward_slip"synthetic_slowslip_data->inversion_mode="slip_deficit"
This section sets both choices so they stay synchronized.
# Choose which synthetic dataset to invert.
# - synthetic_data: forward-slip style example
# - synthetic_slowslip_data: slip-deficit style example
DATASET_NAME = "synthetic_data" # "synthetic_data" or "synthetic_slowslip_data"
if DATASET_NAME == "synthetic_data":
data_filename = DATA_DIR / "synthetic_data.txt"
inversion_mode = "slip_deficit"
elif DATASET_NAME == "synthetic_slowslip_data":
data_filename = DATA_DIR / "synthetic_slowslip_data.txt"
inversion_mode = "forward_slip"
else:
raise ValueError("Unknown DATASET_NAME")
print(f"Dataset: {DATASET_NAME}")
print(f"Data file: {data_filename}")
# Baseline data type settings.
# Note: inversion settings are set in a later cell.
inversion_cfg = gs2d.SlipInversionConfig(
data_has_vertical=True,
save_results=True,
)
Dataset: synthetic_data
Data file: /Users/kajjohns/Library/CloudStorage/OneDrive-IndianaUniversity/FromGoogle/files/Release/GeoSlip2D/Geodesy_TSC/data/synthetic_data.txt
2. Load data and project to the profile#
Load velocity data, filter invalid rows, project selected vectors to the profile, and create ProfileObservations for inversion.
# Load, filter, and project the data,
# then extract the profile-parallel component of the projected displacements
# as observations for inversion.
# Define the map/profile geometry used to project 2-D GNSS vectors onto a 1-D transect.
projection_cfg = gs2d.ProfileProjectionConfig(
endpoints=(-120.0, 45.0, -116.0, 44.09), # Define the endpoints of the profile in (lon1, lat1, lon2, lat2).
project_dist=20.0, # Distance over which to project data points onto the profile.
trench_llh=(-120.0, 45.0), # Location of the trench in (lon, lat, height).
horizontal_component="profile_parallel", # Component of horizontal displacement to use.
)
data_raw = gs2d.load_profile_data(data_filename, data_has_vertical=inversion_cfg.data_has_vertical)
data, good_mask_original = filter_profile_data(data_raw, use_vertical=inversion_cfg.use_vertical)
profile = gs2d.project_data_to_profile(data, projection_cfg, use_vertical=inversion_cfg.use_vertical)
observations = observations_from_projected_profile(profile, use_vertical=inversion_cfg.use_vertical)
print(f"Number of original data rows: {data_raw['lon'].size}")
print(f"Number of retained data rows: {data['lon'].size}")
print(f"Number of data within profile swath: {observations.x_hor.size}")
print(f"Profile x range: {observations.x_hor.min():.2f} to {observations.x_hor.max():.2f} km")
print(f"Perpendicular distance range: {profile['perp_dist'][profile['in_profile']].min():.2f} to {profile['perp_dist'][profile['in_profile']].max():.2f} km")
Number of original data rows: 266
Number of retained data rows: 266
Number of data within profile swath: 43
Profile x range: 24.68 to 295.80 km
Perpendicular distance range: -19.86 to 11.47 km

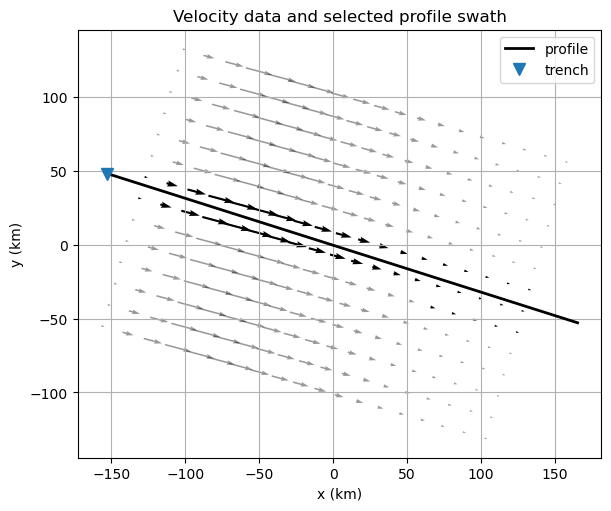

3. Plot map-view data selection#
Use this plot to verify that the profile swath and selected vectors are consistent with your intended transect.
# Visualize the data and the profile swath to confirm that the projection
# and selection of data points is as expected.
xy = profile["xy_gps"]
in_profile = profile["in_profile"]
fig, ax = plt.subplots(figsize=(7, 5), constrained_layout=True)
ax.quiver(
xy[:, 0], xy[:, 1], data["Ve"], data["Vn"],
angles="xy", scale_units="xy", scale=1, width=0.003, alpha=0.4,
)
ax.quiver(
xy[in_profile, 0], xy[in_profile, 1],
data["Ve"][in_profile], data["Vn"][in_profile],
angles="xy", scale_units="xy", scale=1, width=0.004,
)
ax.plot(profile["xy_endpoints"][:, 0], profile["xy_endpoints"][:, 1], "k-", linewidth=2, label="profile")
ax.plot(profile["xy_trench"][0], profile["xy_trench"][1], "v", markersize=8, label="trench")
ax.set_aspect("equal", adjustable="box")
ax.grid(True)
ax.set_xlabel("x (km)")
ax.set_ylabel("y (km)")
ax.set_title("Velocity data and selected profile swath")
ax.legend()
plt.show()
4. Build homogeneous Green’s functions#
Build the interface geometry and homogeneous Green’s functions used by the inversion.
# Build the interface geometry and Green's functions for a homogeneous half-space model.

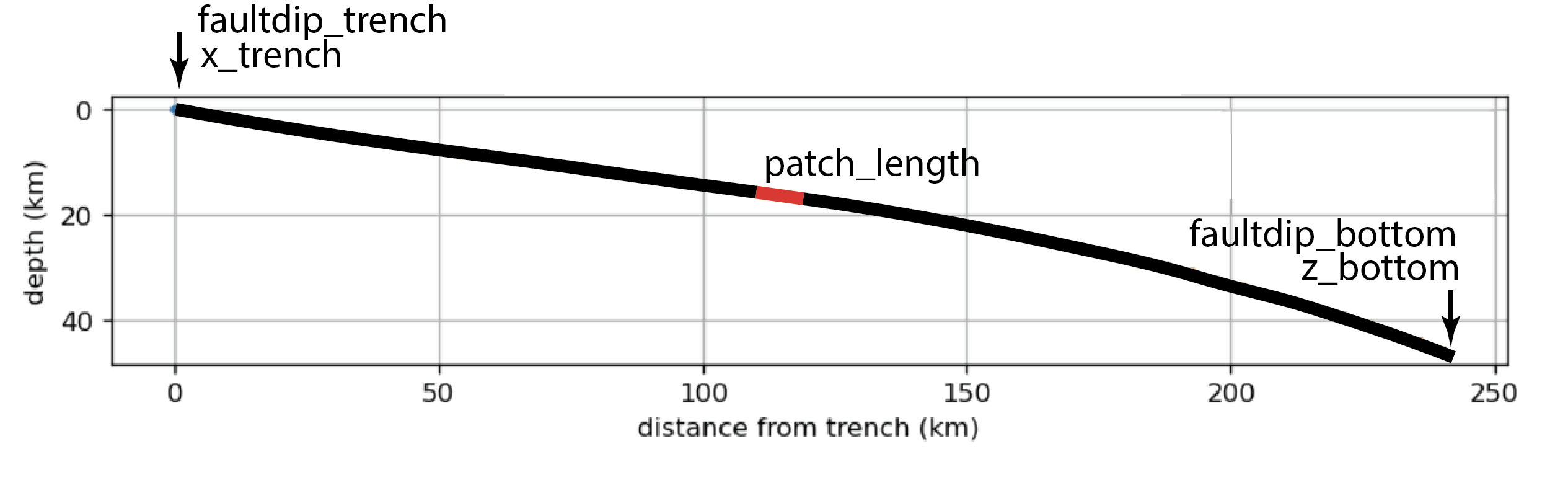

interface = gs2d.make_interface_geometry_legacy(
faultdip_trench=10.0, # Dip of interface at the trench in degrees.
x_trench=0.0, # Location of the trench in km from the profile start.
x_bottom=250.0, # Location of the bottom of the fault in km from the profile start.
faultdip_bottom=20.0, # Dip of interface at the bottom in degrees.
z_bottom=65.0, # Depth of the bottom of the fault in km.
patch_length=5.0, # Length of each fault patch in km.
)
# Define observation points along the profile at which to compute Green's functions.
# Note: these need not match the locations of the projected data points
# the start and end points should be chosen to encompass the projected data points, and the spacing should be fine enough to capture Green's function variability across the profile.
xobs = np.linspace(0.5, 500.0, 300)
# Build Green's functions
greens = gs2d.build_greens(
"homogeneous",
interface,
xobs,
gs2d.HomogeneousConfig(length_override=5.0),
)
print(interface.summary())
print(greens.summary())

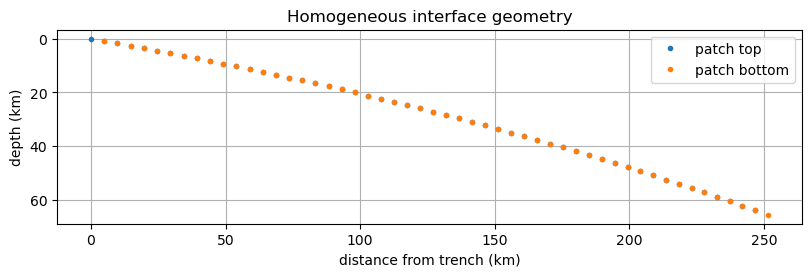

fig = gs2d.plot_interface(interface)
ax = fig.axes[0]
ax.set_title("Homogeneous interface geometry")
plt.show()
InterfaceGeometry(n_patch=52, x=[0, 251] km, z=[-0, 65.5] km)
Greens2D(source_type='homogeneous', n_obs=300, n_patch=52, has_vertical=True, units='displacement_per_unit_slip')
5. Save and reload Green’s functions#
Save Green’s functions to disk and reload them to demonstrate reproducible I/O and downstream reuse.
greens_file = OUTPUT_DIR / "Greens_homogeneous_synthetic_profile.npz"
gs2d.save_greens(greens_file, greens)
greens = gs2d.load_greens(greens_file)
print(f"Saved/reloaded: {greens_file}")
print(greens.summary())
Saved/reloaded: /Users/kajjohns/Library/CloudStorage/OneDrive-IndianaUniversity/FromGoogle/files/Release/GeoSlip2D/Geodesy_TSC/outputs/Greens_homogeneous_synthetic_profile.npz
Greens2D(source_type='homogeneous', n_obs=300, n_patch=52, has_vertical=True, units='displacement_per_unit_slip')
6. Solve the slip inversion#
Solve for profile slip using the configured regularization, solver, and inversion mode.
# Inversion settings.
# The dataset-specific inversion_mode is set below to keep them synchronized.
inversion_cfg = gs2d.SlipInversionConfig(
alpha=1.0,
smoothing_order="second", # "first", "second", or "none"
use_vertical=True,
data_has_vertical=True,
inversion_mode="slip_deficit", # "forward_slip" or "slip_deficit"
solver_type="nonnegative", # "unbounded", "nonnegative", or "bounded"
lower_bound=0.0,
upper_bound=np.inf,
save_results=True,
)
# Keep configuration consistent with dataset choice.
inversion_cfg.inversion_mode = inversion_mode
# Perform the profile slip inversion using GeoSlip2D.
result = gs2d.fit_profile_slip(observations, greens, inversion_cfg)
print("Profile slip inversion complete.")
print(f" Number of horizontal data: {observations.x_hor.size}")
print(f" Number of vertical data: {observations.x_vert.size if observations.has_vertical else 0}")
print(f" Number of model elements: {greens.n_patch}")
print(f" Inversion mode: {inversion_cfg.inversion_mode}")
print(f" Smoothing order: {inversion_cfg.smoothing_order}")
print(f" Solver type: {inversion_cfg.solver_type}")
print(f" Weighted RMS residual: {result['wrms']:.3f}")
print(f" Model roughness: {result['roughness']:.3g}")
if inversion_cfg.save_results:
save_inversion_result(inversion_cfg.results_filename, result)
print(f"Saved result file: {inversion_cfg.results_filename}")
Profile slip inversion complete.
Number of horizontal data: 43
Number of vertical data: 43
Number of model elements: 52
Inversion mode: slip_deficit
Smoothing order: second
Solver type: nonnegative
Weighted RMS residual: 1.151
Model roughness: 4.31
Saved result file: profile_slip_inversion_results.mat

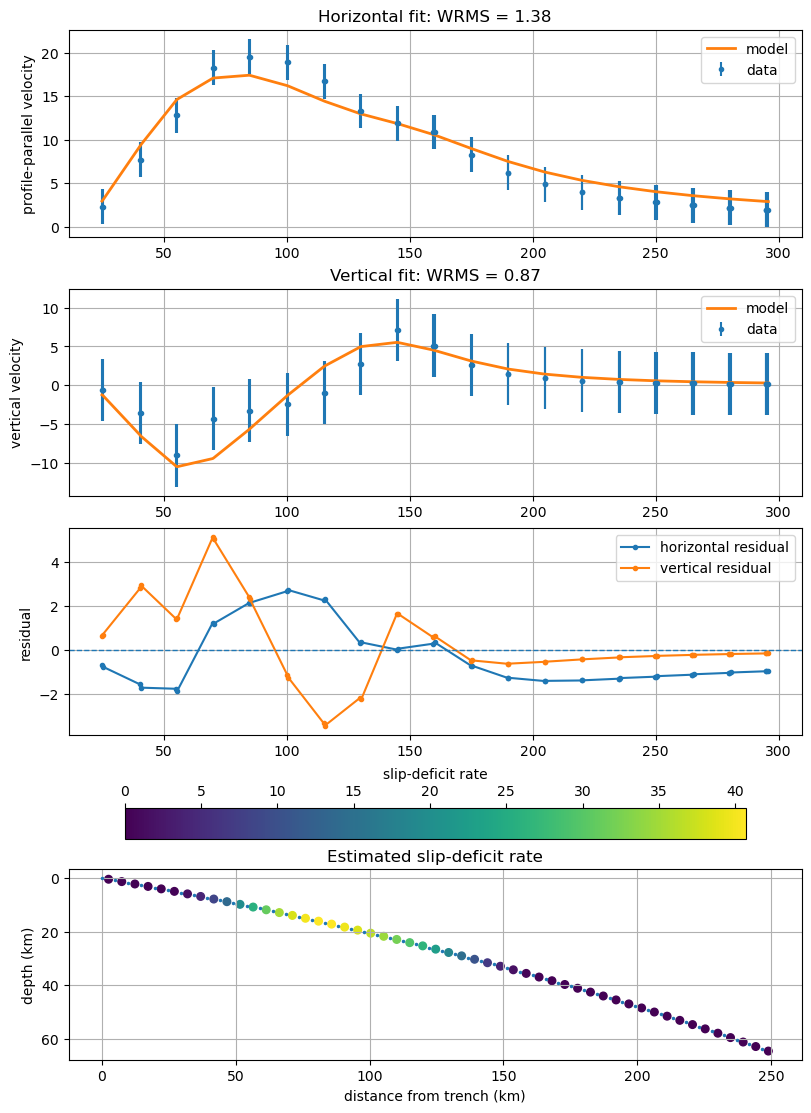

7. Plot fits and recovered slip#
Plot horizontal/vertical fits, residuals, and the recovered slip distribution for interpretation and quality control.
# Visualize the data fit, residuals, and estimated slip distribution.
# Sort the data by location for plotting.
order_h = np.argsort(observations.x_hor)
order_v = np.argsort(observations.x_vert) if observations.has_vertical else None
centers_x = greens.interface.centers[:, 0]
centers_z = greens.interface.centers[:, 1]
fig, axes = plt.subplots(4, 1, figsize=(8, 11), constrained_layout=True)
ax = axes[0]
ax.errorbar(observations.x_hor, observations.v_hor, yerr=2 * observations.sig_hor, fmt=".", label="data")
ax.plot(observations.x_hor[order_h], result["dhat_hor"][order_h], linewidth=2, label="model")
ax.set_ylabel(profile.get("horizontal_label", "horizontal velocity"))
ax.set_title(f"Horizontal fit: WRMS = {np.sqrt(np.mean((result['residual_hor'] / observations.sig_hor) ** 2)):.2f}")
ax.grid(True)
ax.legend()
ax = axes[1]
if observations.has_vertical:
ax.errorbar(observations.x_vert, observations.v_vert, yerr=2 * observations.sig_vert, fmt=".", label="data")
ax.plot(observations.x_vert[order_v], result["dhat_vert"][order_v], linewidth=2, label="model")
ax.set_title(f"Vertical fit: WRMS = {np.sqrt(np.mean((result['residual_vert'] / observations.sig_vert) ** 2)):.2f}")
ax.legend()
ax.set_ylabel("vertical velocity")
ax.grid(True)
ax = axes[2]
ax.plot(observations.x_hor[order_h], result["residual_hor"][order_h], ".-", label="horizontal residual")
if observations.has_vertical:
ax.plot(observations.x_vert[order_v], result["residual_vert"][order_v], ".-", label="vertical residual")
ax.axhline(0, linestyle="--", linewidth=1)
ax.set_ylabel("residual")
ax.grid(True)
ax.legend()
ax = axes[3]
sc = ax.scatter(centers_x, centers_z, c=result["slip_hat"], s=30)
ax.plot(greens.interface.topx, greens.interface.topz, ".", markersize=3)
ax.set_aspect("equal", adjustable="box")
ax.invert_yaxis()
ax.grid(True)
ax.set_xlabel("distance from trench (km)")
ax.set_ylabel("depth (km)")
ax.set_title(f"Estimated {result['model_label']}")
cbar = fig.colorbar(sc, ax=ax, orientation="horizontal", location="top")
cbar.set_label(result["model_label"])
fig.savefig(OUTPUT_DIR / f"{DATASET_NAME}_geoslip2d_inversion_summary.png", dpi=200)
plt.show()
